Fitting Adjustable Bed Motors Guide

Step 1

Motor 1

Plug in the hand control.

Step 2

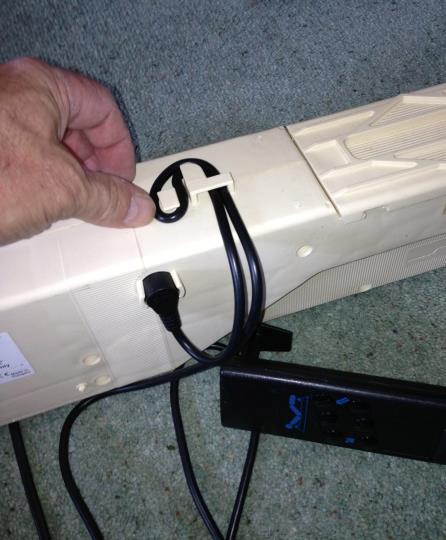

Motor 2

Loop the cable through the bridge, hook it over the anchor.

Step 3

Motor 3

Pull back on the cable. Slide the two motor covers off.

Step 4

Motor 4

Lean the adjustable bed mechanism against a wall.

Step 5

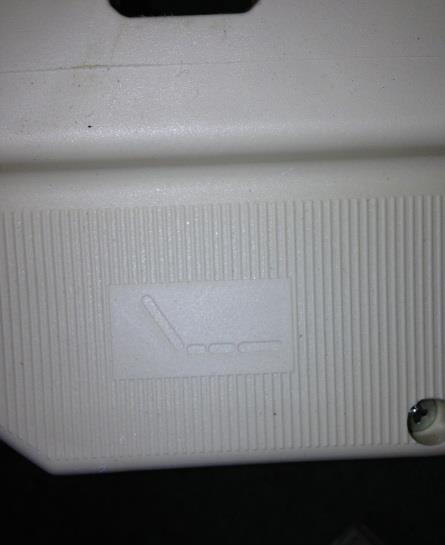

Motor 5

You will find an illustration of the head end on the motor.

Step 6

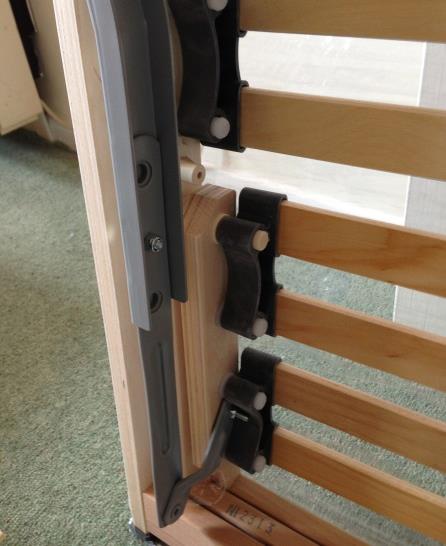

Motor 6

The head end of the mechanism can be identified by the short neck section.

Step 7

Motor 7

Position the twin motor over the hooks of the drive bars.

Step 8

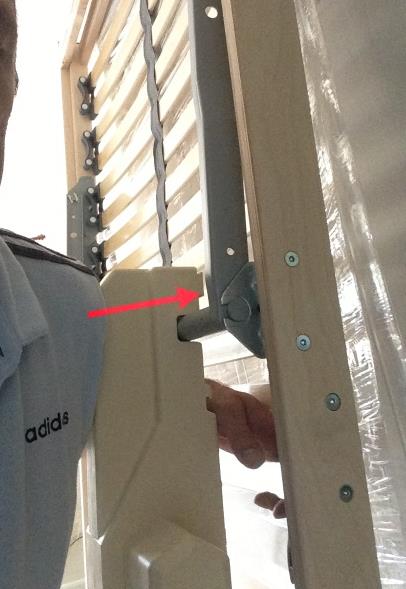

Motor 8

Push hard. You will hear a click when it locates into position.

Step 9

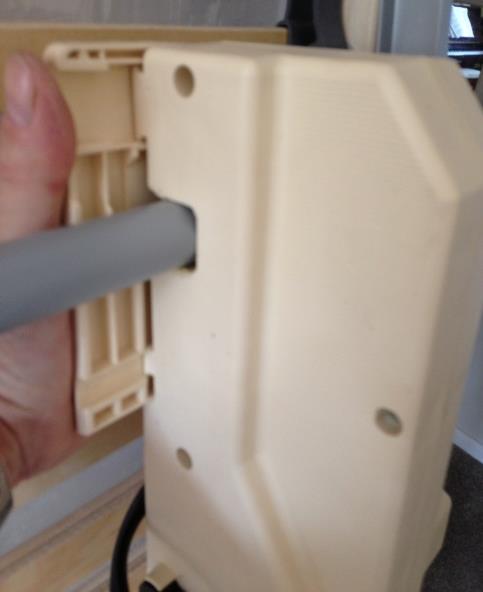

Motor 9

Slide the motor covers back on. They will not fit if the motors are not pushed back on hard enough.

To Download a Copy of the ‘Fitting a Foot End Drawer’ Guide Please Click Here To View Guide
